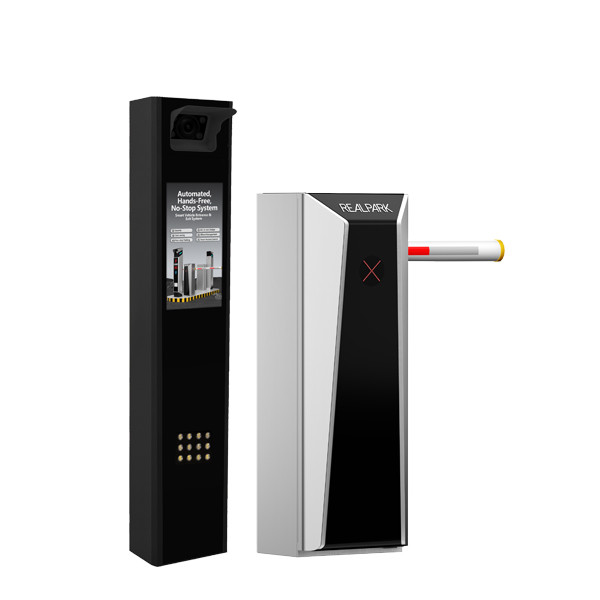

RPL-YB06-LCD LPR Parking Controller with 5MP Camera & 18.5" LCD Display
The RPL-YB06-LCD is an advanced License Plate Recognition (LPR) Parking Controller integrated with a 5MP high-definition camera and an 18.5-inch LCD display. Designed for efficient vehicle access management, this system ensures fast, accurate, and automated entry/exit control for parking lots, residential areas, commercial buildings, and more.
5MP Camera parking Machine Features:
✔ 5MP High-Resolution Camera – Captures clear license plate images day and night.
✔ 18.5-inch LCD Display – Shows real-time vehicle information, parking status, and payment details.
✔ Fast & Accurate LPR Technology – Supports multiple plate formats with >98% recognition accuracy.
✔ Automatic Barrier Control – Seamlessly integrates with boom gates for smooth vehicle flow.
✔ Multiple Connectivity Options – Supports TCP/IP, RS485, Wiegand, and more for flexible system integration.
✔ Cloud & Local Storage – Stores license plate data for security and reporting.
✔ Weatherproof & Durable – Designed for outdoor use in various climates.
✔ User-Friendly Interface – Easy setup and management via intuitive software.
Smart LPR Parking Solution
Product Specifications:
| Parameter | Specification |
| License Plate Camera | RPL-YB208-YB06 |
| Recognition Rate | ≥99.9% |
| Sensor | 3MP / 4MP / 5MP |
| LCD Screen |
| Size | 18.5" TFT |
| Resolution | 1366×768 |
| Brightness | 1000 cd/m² |
| Device Specifications |
| Protection Rating | IP42 (Dust/Water Resistant) |
| Operating Temperature | -20°C to 75°C |
| Operating Humidity | 5% to 85% |
| Power Consumption | 60W MAX |
| Dimensions (W×D×H) | 335×150×1395 mm |
| Gross Weight | ≈14kg |
Intelligent Integrated LPR Parking Management Solution
Car License Plate Recognition System Applications:
Commercial Parking Lots (Malls, Offices, Hotels)
Residential Communities (Gated Villas, Apartments)
Public Parking Areas (Airports, Hospitals, Stadiums)
Toll Stations & Smart City Projects
Parking Machine With 5MP Camera and 18.5 inch LCD Display Benefit:
✅ Reduces Manual Work – Fully automated entry/exit without staff intervention.
✅ Enhances Security – Prevents unauthorized access with real-time LPR tracking.
✅ Improves Traffic Flow – Minimizes congestion with fast recognition.
✅ Cost-Effective – Lowers labor costs and increases operational efficiency.
✅ Scalable Solution – Can be integrated with payment systems and smart parking platforms.
Diagram of Installation Case for Smart Parking Management System
LPR parking solutions OEM/ODM Services:
we offer OEM/ODM services for high-quality LPR parking solutions, allowing businesses to integrate our advanced technology under their own brand. Whether you need a standard product with your logo or a fully customized parking management system, we provide flexible manufacturing and development options to meet your requirements.
RPL-YB06-LCD Parking Machine FAQs:
Q: What is the recognition accuracy of the RPL-YB06-LCD?
A: Over 98% under optimal conditions.
Q: Does it support night vision?
A: Yes, the 5MP camera has IR illumination for clear night-time recognition.
Q: Can it integrate with payment systems?
A: Yes, it supports cashless payments, RFID, and mobile app integration.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for extreme weather conditions.
Q: Is remote management possible?
A: Yes, it supports cloud-based monitoring and control.
